EnergyPack M600

Your Industrial-Grade Energy Heart.

EnergyPack M600
Industrial Mobile Hybrid BESS





The Foxtheon EnergyPack M600 delivers reliable, modular, and zero-emission power for construction, emergency backup, and off-grid operations. Replace your noisy generators with the future of energy.

Request a Project Assessment
0 24 /7

FoxCloud Intelligent Management

0 <20ms

Response Speed

0 %+

Save Fuel Consumption

0 tons+

Reduce CO2 Emissions

Hybrid BESS M600


The Foxtheon ENERGYPACK M600+ is a 10ft containerized Hybrid Battery Energy Storage System (BESS) delivering 675 kVA of power and 948 kWh of capacity. It integrates high-density CATL LiFePO4 cells with a standard-setting Liquid Cooling System to ensure 8,000+ cycles of performance. Designed for heavy industry, mining, and microgrids, it serves as an intelligent energy hub with <20ms seamless power transition.

Ultimate Cost Efficiency

Optimize fuel consumption and reduce total energy costs by 30%-80%through peak shaving and intelligent load management.

Mission-Critical Stability

<20ms seamless switching ensures that your mining or data center operations never skip a beat, even during power transitions.

Future-Proof Scalability

A modular design with Open APIs, allowing the M600+ to integrate with M-series units (like M150) or third-party asset management software.

Rapid Deployment

True Plug & Play capability.
The 10ft container design is optimized for global logistics and instant onsite setup.

External view of Foxtheon M600+ ENERGYPACK, a 10ft ISO containerized mobile hybrid energy storage system featuring industrial-grade IP54 enclosure.

M600 Key Specs

M600M600+
Nominal Power675 kVA675 kVA
Surge Power (10s)900 kVA900 kVA
Battery Capacity711 kWh (CATL LFP)948 kWh (CATL LFP)
Enclosure10ft ISO Container10ft ISO Container
Cycle Life8000 Cycles @ 80% DoD8000 Cycles @ 80% DoD

Request A Quote
How It Works

FoxMind™ EMS: The Intelligence Behind the Hardware



FoxMind™ EMS is the intelligent core of the M600, transforming complex energy dispatch into simple solutions aligned with your business objectives. You don’t need to be a power expert—just select your desired goal: save on electricity costs, reduce fuel consumption, or ensure critical power supply

One-Click Business Modes

Deliver high-capacity power for large-scale festivals without noise or emissions.

Stop Wasting Fuel on Low Loads



Generators are inefficient at low loads. FoxMind™ runs the genset only at its peak efficiency point to charge the batteries, then shuts it down.

Eliminates "wet-stacking" and carbon buildup

Reduces O&M intervals by 50%+

Ensures quiet nights with "Silent Mode" scheduling

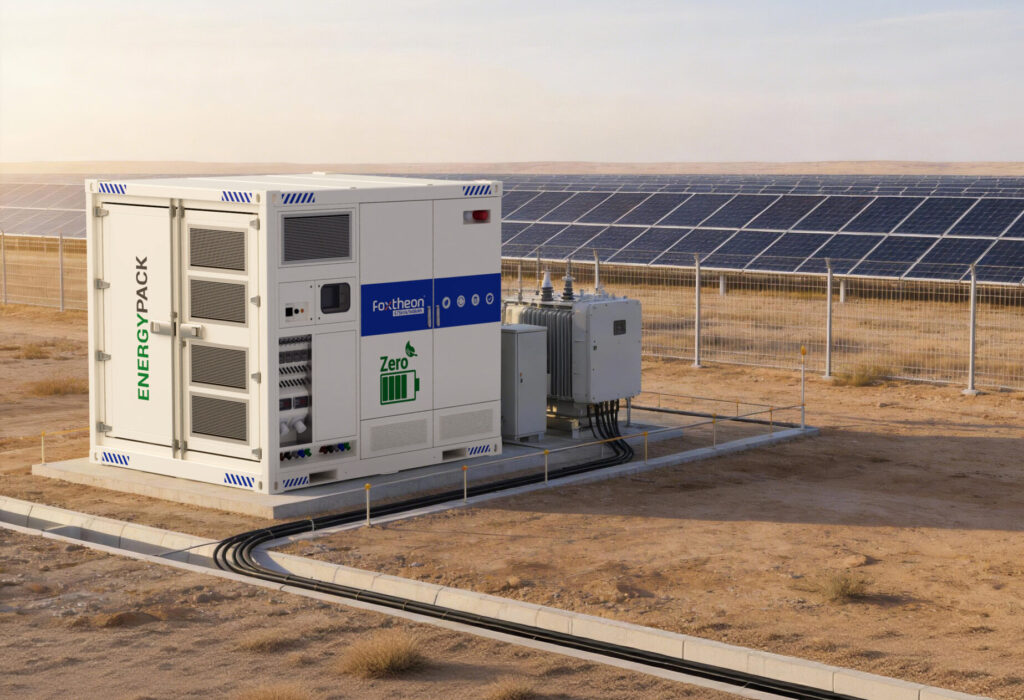

Turn Intermittent Solar into Stable Power




Connect PV arrays directly to the EnergyPack M600. FoxMind™ buffers solar fluctuations, stores excess energy, and prioritizes clean power usage before starting the generator.

Maximize renewable energy penetration.

Smooth voltage dips caused by cloud cover

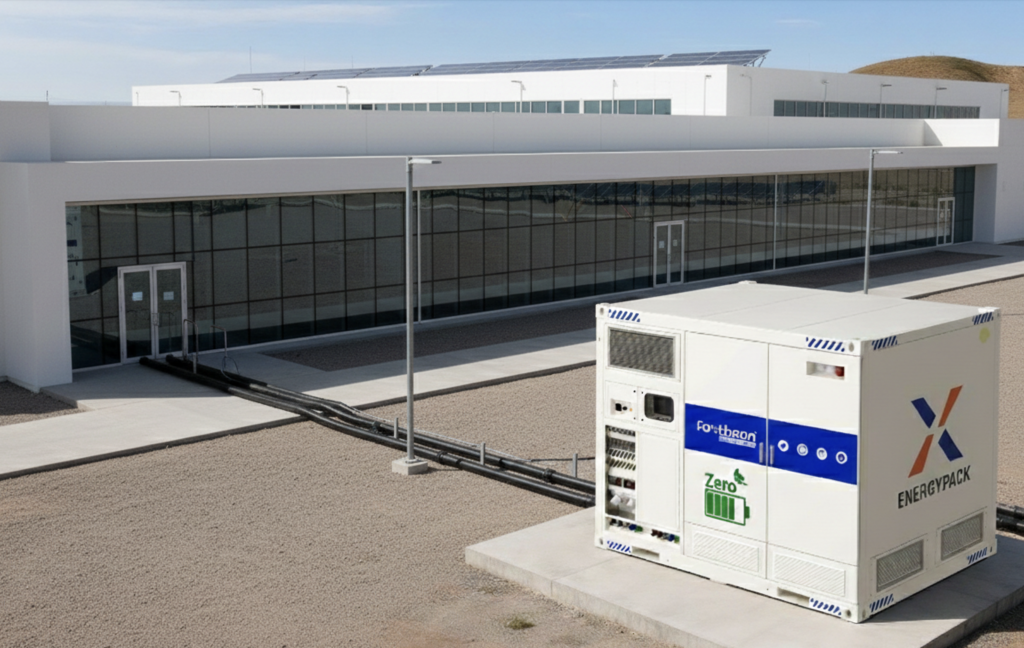

M600 industrial energy storage system deployed outside a modern data center building, providing continuous power supply and emergency backup solution.

Always-On Reliability



Functioning as a robust UPS, the M600 detects power loss and takes over in less than 20ms.

Protects servers, control rooms, and labs

Clean, Pure Sine Wave output for sensitive electronics.

A Scalable Microgrid Building Block



We give you the tools for unified control, protecting your investment.

Open Platform & Integration

We provide standard protocols (RESTful API, Modbus-TCP) to integrate the M600 directly into your existing rental fleet management software.



Standard Protocols

Natively supports protocols such as Modbus-TCP, MQTT, and CAN for easy integration into industrial field networks.



FoxCloud™ Remote Management

Provides powerful remote monitoring, data analytics, fault diagnostics, and Firmware Over-The-Air (FOTA) upgrade services to ensure your assets are always operating at peak performance.

Extensive Genset Compatibility

Regardless of your diesel generator specifications—from small single units to large paralleled groups—the M600 can be quickly integrated via preset control modes for plug-and-play collaboration.

Typical Application Scenarios

Construction Site Offices

HVAC, lighting, and IT systems running 24/7 Provide clean, silent power for urban infrastructure projects

Utility & Microgrids

Stabilize local grids and integrate renewable energy (PV/Wind)

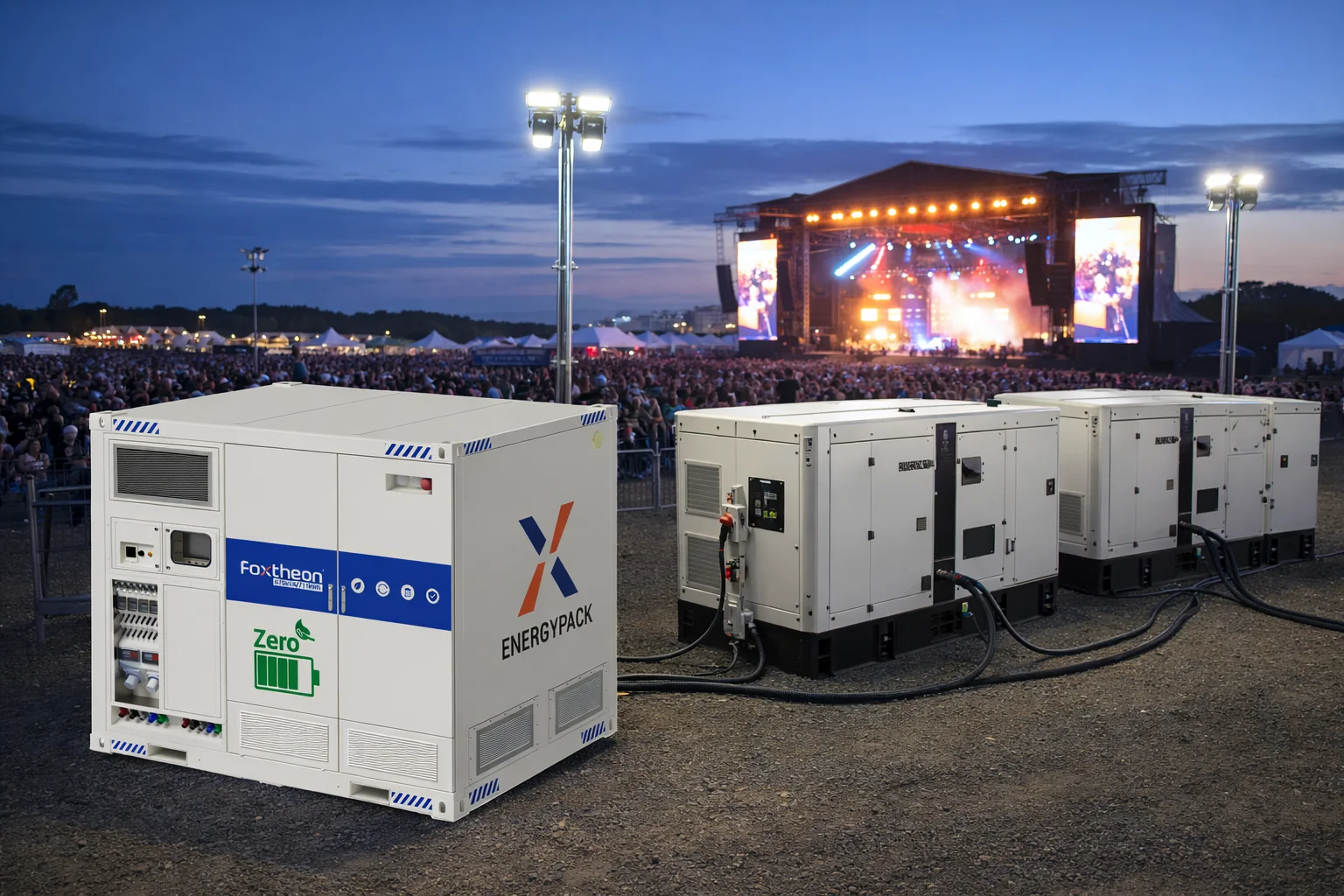

Event & Entertainment

Deliver high-capacity power for large-scale festivals without noise or emissions.

Mining & Remote Industry

Replace or supplement diesel generators in off-grid locations.

Field Hospitals & Clinics

Reliable, quiet power for sensitive environments.

M-Series Energy Storage System – Comparison Table

EnergyPack – M Series | Industrial Mobile Hybrid BESS

EnergyPack – M Series

Industrial Mobile Hybrid BESS

M150 / 150Pro
EnergyPack M150
Power & Energy
  • Rated Power150 / 237 kVA
  • Peak Power225 / 300 kVA (10s)
  • Energy237 kWh
Application & System
  • Best Foroff-grid site offices,Mobile sites, UPS, EV charging
  • Parallel UnitsUp to 16
  • EnclosureMobile trailer / skid
  • Thermal MgmtLiquid cooling
Learn More
M300 / 300Pro
EnergyPack M300
Power & Energy
  • Rated Power300 / 450 kVA
  • Peak Power450 / 600 kVA (10s)
  • Energy474 kWh
Application & System
  • Best ForMicrogrids, mining camps
  • Parallel UnitsUp to 16
  • EnclosureISO 10-ft container
  • Thermal MgmtLiquid cooling
Learn More
M600 / 600+
EnergyPack M600
Power & Energy
  • Rated Power675 kVA
  • Peak Power900 / 1000 kVA (10s)
  • Energy711–948 kWh
Application & System
  • Best ForLarge sites,Event, infrastructure
  • Parallel UnitsMW scalable
  • EnclosureISO 10-ft container
  • Thermal MgmtLiquid cooling
Learn More
M900
EnergyPack M900
Power & Energy
  • Rated Power900 kVA
  • Peak Power1200 kVA (10s)
  • Energy948 kWh
Application & System
  • Best ForIndustrial mining & hubs
  • Parallel UnitsMW scalable
  • EnclosureISO 10-ft container
  • Thermal MgmtLiquid cooling
Learn More

M600 Key Specs

External view of Foxtheon M600+ ENERGYPACK, a 10ft ISO containerized mobile hybrid energy storage system featuring industrial-grade IP54 enclosure.
Nominal Rated Power (kVA)
675
Rated Voltage
400/480/220 VAC
Nominal Peak Power (10s) (kVA)
900
Cell chemistry
LiFePO4
Nominal capacity (kWh)
711 kWh
Frequency
50 (60) Hz
Operating Temperature
-20 to +50 °C
Power Factor Range
0 ind. …1 … 0 cap
System round trip efficiency (%)
up to 92.2%
AC Connection
3-Phase 4-Wire + PE
Battery management system
Automotive grade BMS
Download
Temperature control
Liquid cooling / PI heating film
Nominal Rated Power (kVA)
675 kVA
Power Response Time
< 200 ms
Nominal Peak Power (10s) (kVA)
1000kVA
Cell chemistry
LiFePO4
Nominal capacity (kWh)
948.48kWh
Effective capacity (kWh)
948.48 kWh (100% DoD)
System round trip efficiency (%)
up to 92.2%
Transport Compliance
CSC Certified (Convention for Safe Containers)
Battery management system
Industrial-grade BMS with cell-level monitoring
Temperature control
Liquid cooling / PI heating film

Ready to Build a Cleaner, quieter, More Efficient Site?



Get a custom simulation of your potential fuel savings today.

Request a Technical Consultation

Frequently Asked Questions

Can Foxtheon EnergyPack M600 work with diesel generators and solar?

Yes. Both Foxtheon hybrid energy storage systems integrate seamlessly with diesel generators, hybrid generators, and solar PV systems. They form a scalable hybrid power system or microgrid, enabling smarter energy management, lower fuel costs, and reduced emissions.

How does the Hbrid BESS M600 handle extreme temperatures?

A: It features an advanced industrial liquid cooling and pre-heating system, maintaining optimal battery health between -20°C and +50°C.

Can the Foxtheon M600 connect with other M-series products?

A: Yes, the energypack M600 is designed as an open platform. It can be paralleled with other units or integrated with smaller units like the M150 to create a customized microgrid ecosystem.

How do Foxtheon hybrid energy storage systems reduce total cost of ownership (TCO)?

Foxtheon systems reduce total cost of ownership (TCO) by: Avoiding oversized diesel generators (P Series) Reducing generator runtime and fuel consumption (M Series) Lowering maintenance, noise, and carbon emissions This makes Foxtheon hybrid energy storage a cost-effective and future-ready off-grid power solution.

Why does Foxtheon use CATL batteries in the M600?

A: We partner with CATL to ensure our clients receive the world’s most reliable, high-density LFP cells, maximizing safety and ensuring a longer system lifespan of over 8,000 cycles.

Is liquid cooling standard on all Foxtheon M-Series models?

●A: Yes. To ensure performance in harsh environments, every M-Series model (M150, M300, M600+) comes standard with an advanced liquid cooling system.
