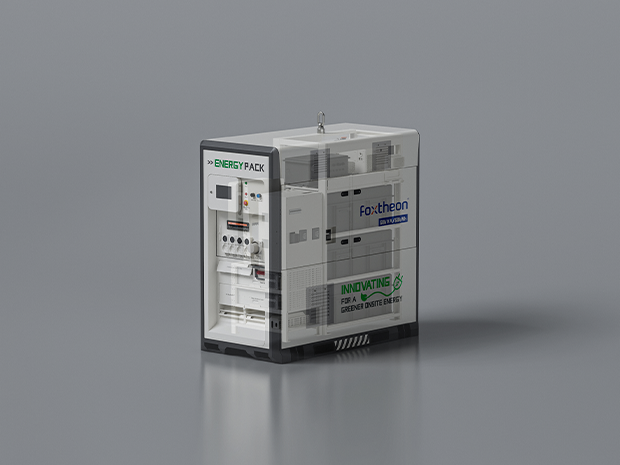

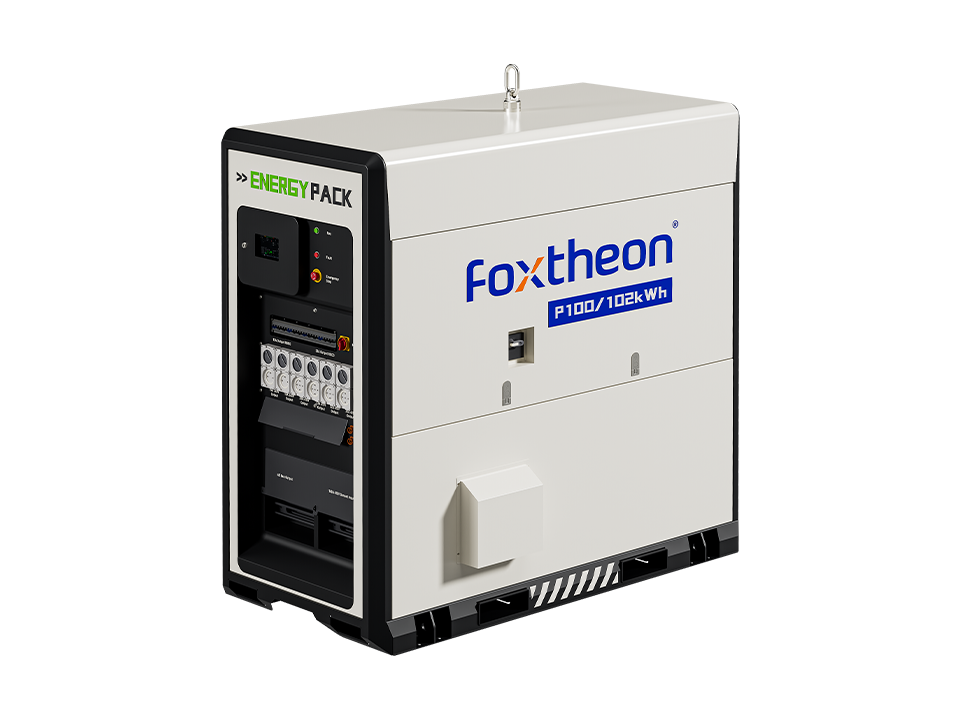

EnergyPack P100

EnergyPack is the ideal battery energy storage solution for isolated or remote locations that need to reduce energy costs while providing a reliable power supply. The EnergyPack P100 models are designed to optimize peak shaving, low loads, and mobile power solutions. They can also be integrated with generators to create a hybrid power solution for industrial applications.

0 ms
response speed
0 %
Save fuel consumption
0 /7h

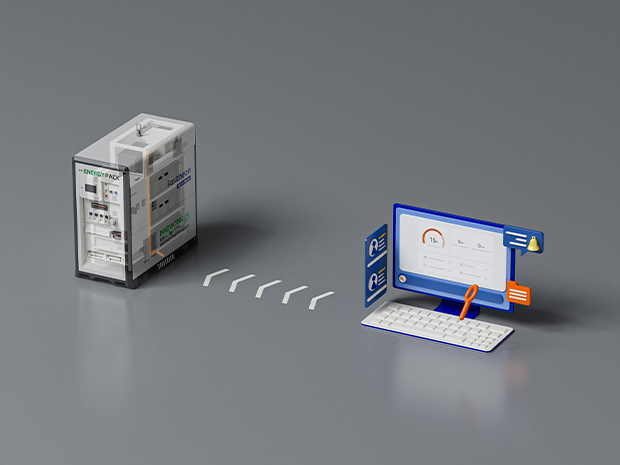

FoxCloud Intelligent Management
0 tons
Reduce CO2 emissions

Product Description:

Energypack P100 with a large capacity of 102kWh battery storage is designed to meet the non-stationary power demand and seamlessly integrates with other energy sources, supporting efficient and reliable power supply, which is suitable for manufacturing, telecom and renewables.

EMS

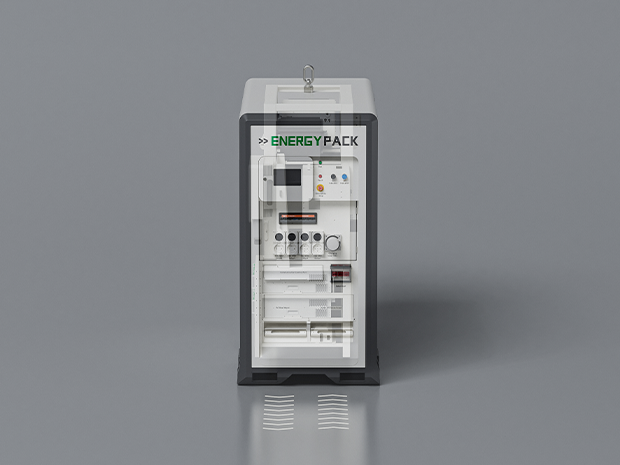

FoxMind is an intelligent energy management system that autonomously regulates power distribution and storage among generators, batteries, photovoltaics, and main systems to optimize the most cost-effective hybrid power management approach for the entire system.

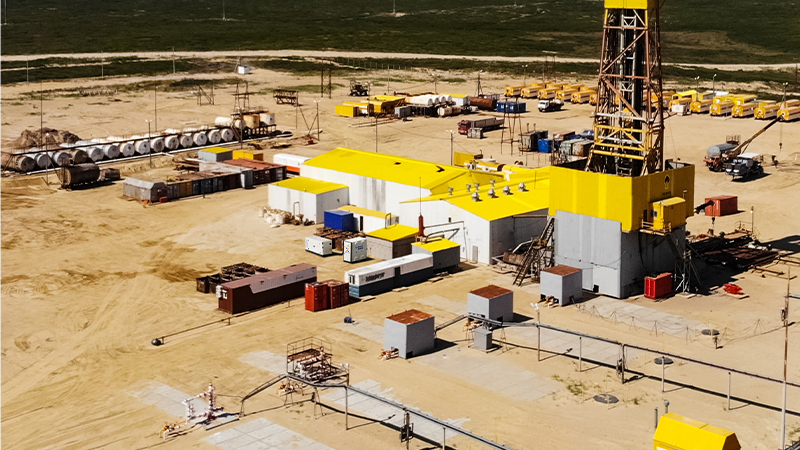

HYBRID MODE

In hybrid mode, the EnergyPack P60/P100 synchronizes with traditional diesel generators to stabilize loads, allowing the generator to operate optimally. This enhances fuel efficiency and enables the use of smaller generators, making the EnergyPack an effective energy storage system for improving overall performance.

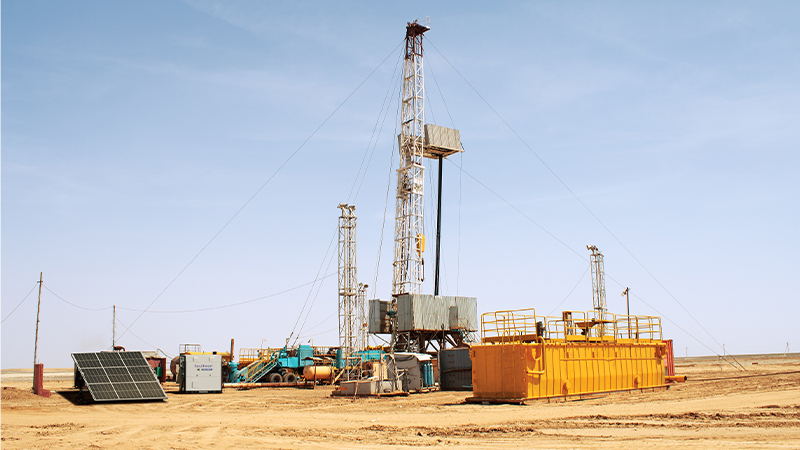

MICROGRID

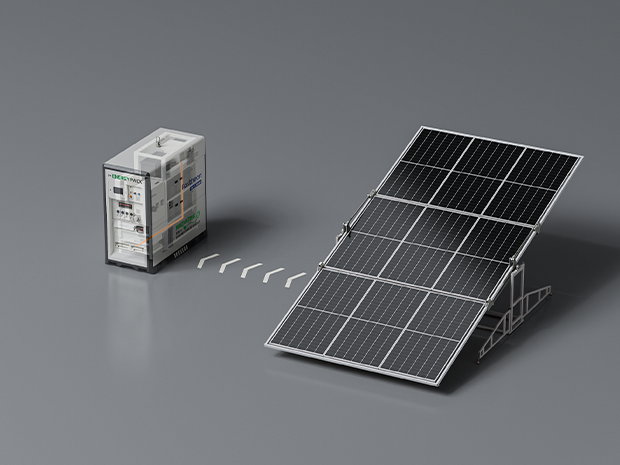

The EnergyPack P60/P100 plays a crucial role in microgrid applications by integrating various components of the grid, such as renewable energy sources, conventional power generation, and electrical loads. These energy storage systems facilitate seamless coordination of energy generation, distribution, and consumption by storing excess energy, smoothing out power fluctuations, providing backup power, and ensuring grid stability. Ultimately, they enable efficient and resilient operation of the microgrid system as a whole.

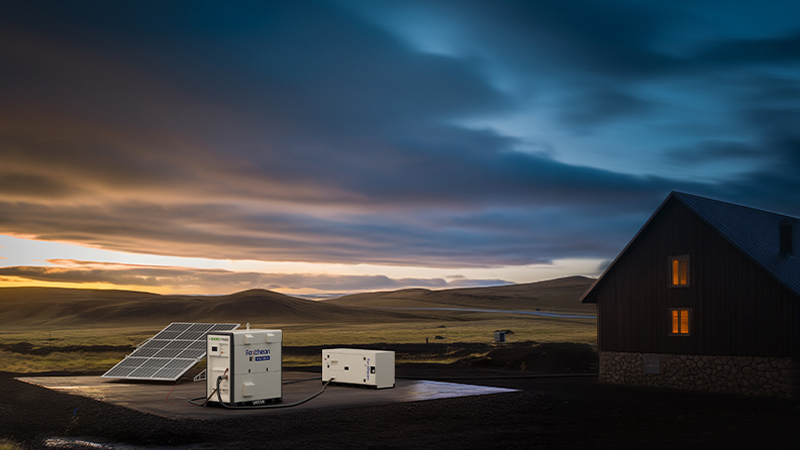

ISLAND MODE

The EnergyPack P60/P100 can operate independently as standalone power stations, making them ideal for noise-sensitive environments such as events, film productions, and night operations. These energy storage systems also effectively address low load challenges.

Tower Crane

Events

Construction Site

Oilfield

Mining

P100 Specifications

Nominal Rated Power (kVA)
100 kVA
Overload Power (60s) (kVA)
125 kVA
Nominal Peak Power (10s) (kVA)
250 kVA
Rated Voltage (VAC)
400 VAC
Output Voltage Range (VAC)
400 (-10%~+15%)
Frequency (Hz)
50 (60) Hz
Cell Chemistry
LiFePO4
Nominal Capacity (kWh)
125kWh
Effective Capacity (kWh)
112.5 kWh
System Round Trip Efficiency (%)
up to 96%
Nominal Rated Power (kVA)
68 kVA
Overload Power (60s) (kVA)
85 kVA
Nominal Peak Power (10s) (kVA)
125 kVA
Rated Voltage (VAC)
400 VAC
Output Voltage Range (VAC)
400 (-10%~+15%)
Frequency (Hz)
50 (60) Hz
Cell Chemistry
LiFePO4
Nominal Capacity (kWh)
68 kWh
Effective Capacity (kWh)
61.2 kWh
System Round Trip Efficiency (%)
up to 96%

EnergyPack P100

Please contact us for more information
