EnergyPack M100

100kVA/188kWh Battery Energy Storage System/On-Site Energy Solution

0 %+
Reduce pollutant discharge
0 %+
Reduce fuel consumption
0 /7
FoxCloud intelligent management

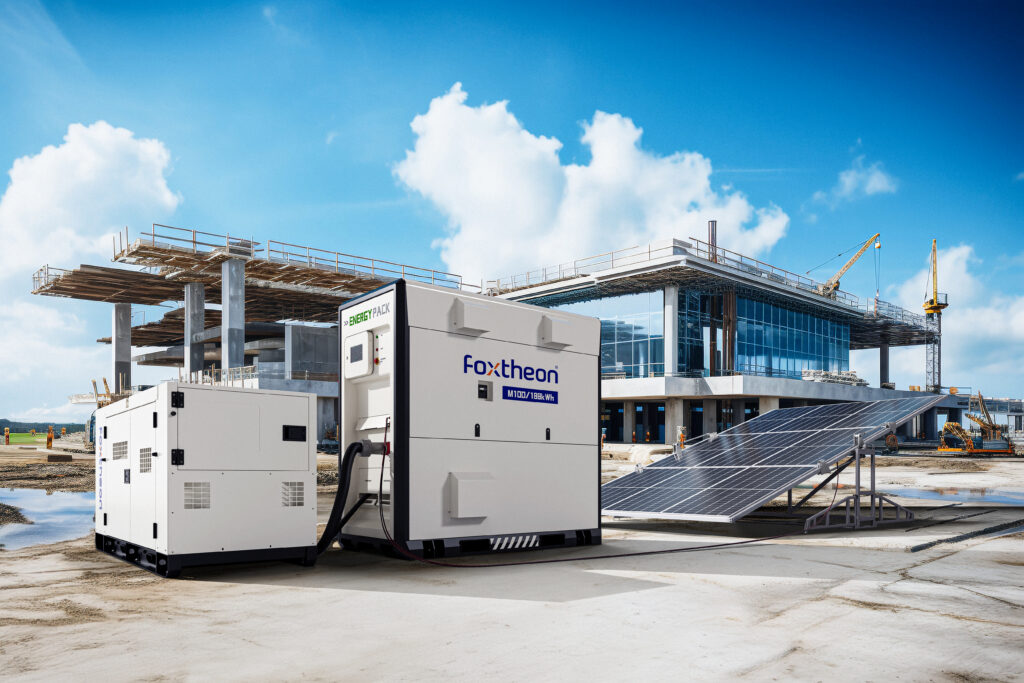

EnergyPack M100

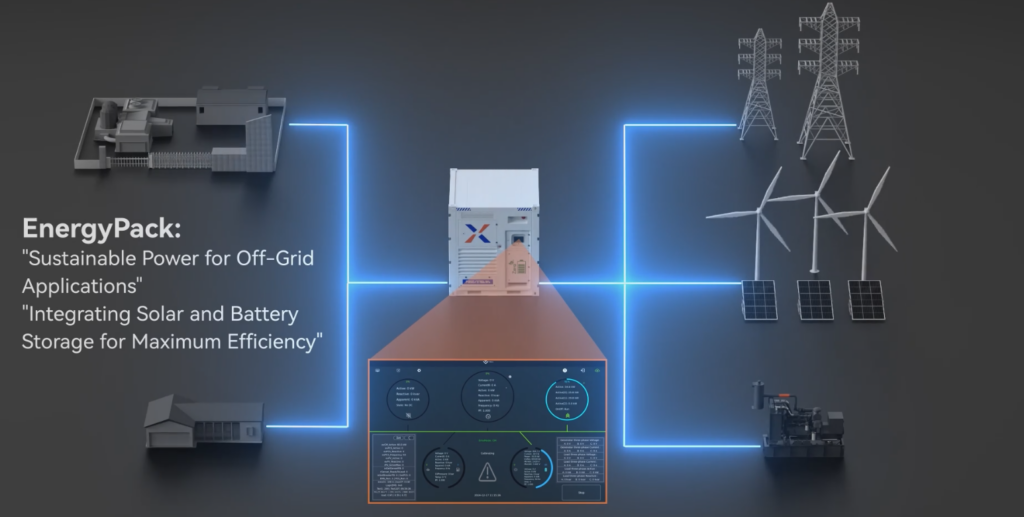

The EnergyPack M100 is a versatile battery energy storage system designed to integrate seamlessly with generators, photovoltaic (PV) systems, and other clean energy sources. It significantly reduces fuel usage and serves as a central controller for efficient energy distribution, ensuring reliable and sustainable power supply.

Quick Deployment

Modular design with plug-and-play capabilities, ensuring easy set up and quick deployment suitable for various scenarios.

Intelligent Energy Management

Optimizes energy usage by intelligently controlling battery charging and discharging, as well as the starting and stopping of the generator, based on predetermined time settings, the availability of renewable energy, and battery capacity.

Remote Monitoring and Management

Supports 24/7 unmanned operation with an integrated remote control and management system, reducing maintenance costs and labor requirements.

Renewable Energy Integration

Seamlessly integrates with solar renewable energy sources, stores excess renewable energy for use during low production.

Application Scenarios

Site Offices; Mining Camps; Off-Grid Residential Communities; Remote Pumping Sites, Events

Edit Content

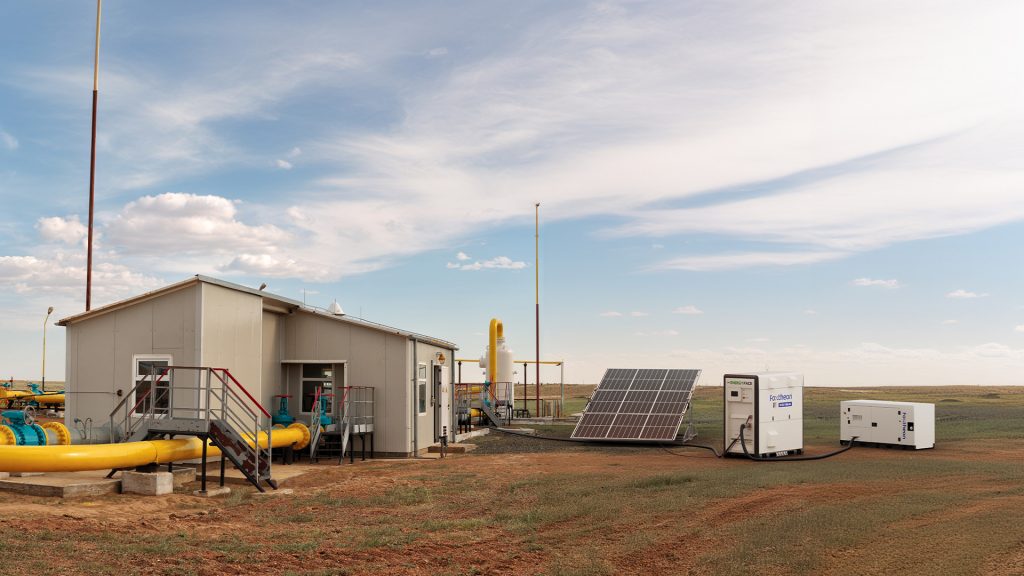

Site Offices/Remote Mining Campsl

Provides reliable and stable power supply in remote and harsh environments.
Reduces diesel generators running time up to 80%, cutting down fuel costs and emissions.
Edit Content

Off-Grid Residential Communities

Supplies consistent power to homes in off-grid or remote areas.
Integrates with renewable energy sources like solar panels to provide a sustainable energy solution.
Edit Content

Remote Pumping Sites

Integrates with solar renewable energy sources and backup generators, it provide reliable and sustainable power to guarantee uninterrupted water pumping.
Benefits: Reduces reliance on diesel generators, resulting in significant savings on fuel and operational expenses over time.
Edit Content

Events:

Description: Provide a quiet and reliable power solution for events.
Benefits: Silent in operation, providing zero noise emissions and a safer working environment for events

EnergyPack M100

Performance
  • Nominal Rated Power: 100 kVA
  • Overload Power (60s): 125 kVA
Mechanical
  • Dimensions (L x W x H): 2300 x 1150 x 2200 mm
  • Weight: 2500 kg
Electrical
  • Rated Voltage: 415 VAC
  • Frequency: 50/60 Hz
  • Power Factor Range: 0 ind. …1 … 0 cap
  • Nominal AC Current: 139 A
  • Maximum AC Current (60s): 173 A
Battery
  • Cell Chemistry: LiFePO4
  • Nominal Capacity: 188 kWh
  • Effective Capacity: 169 kWh
  • Recharging Time: 1.8 hours @ 100 kW, 3 hours @ 60 kW
  • Depth of Discharge (DoD): 90%
  • Discharging Time: Dependent on load ●Lifetime (80% DoD): 7000 cycles
  • Temperature Control: Liquid cooling / PI heating film
Environmental
  • Protection Class: IP54
  • Corrosion Protection: C3 (C5M)
  • Operating Temperature: -20 to +50 ℃
  • Humidity: 0-95% (non-condensing)
  • Maximum Operating Altitude: 3000 m
  • Sound Power Level: <50 dB(A) @1m
