Modern industrial and commercial energy infrastructure faces a complex matrix of variable utility tariffs, renewable intermittency, and critical load protection requirements. A properly engineered battery electric storage system (BESS) addresses these challenges not as a standalone novelty but as an integrated asset that improves power reliability, reduces demand charges, and enables participation in energy arbitrage or ancillary service markets. This article provides a component-level examination of BESS technology, quantifies performance benchmarks, and outlines deployment architectures suitable for manufacturing facilities, data centers, and renewable-heavy microgrids. Industry practitioners will gain actionable criteria for vendor selection, safety compliance, and return-on-investment modeling.
1. Core Architecture of a Battery Electric Storage System
Any industrial-grade battery electric storage system comprises three interdependent subsystems: the battery pack (energy storage medium), power conversion system (PCS), and battery management system (BMS) plus an energy management system (EMS) for supervisory control. Understanding their interactions is mandatory for specifying capacity, cycle life, and grid-compliance.
1.1 Battery Chemistry Selection – LFP vs. NMC
Lithium iron phosphate (LFP) cells have become the dominant choice for stationary applications due to intrinsic thermal stability, cycle life exceeding 6,000 cycles at 80% depth of discharge (DoD), and absence of cobalt. Nickel manganese cobalt (NMC) offers higher energy density (250–270 Wh/kg versus 150–180 Wh/kg for LFP) but requires more sophisticated thermal management. For applications where footprint is constrained and frequent high C-rate discharges are needed, NMC remains viable; however, LFP now leads in safety and long-term levelized cost of storage (LCOS).
1.2 Power Conversion System and Grid-Following vs. Grid-Forming
The PCS acts as the bidirectional interface between DC battery strings and AC loads or the utility grid. Modern PCS units achieve round-trip efficiencies of 96–98% and offer reactive power compensation. A critical technical distinction lies between grid-following inverters (which require a stable voltage reference) and grid-forming inverters (which can establish a microgrid island). For facilities requiring black-start capability or operation during utility outages, a grid-forming PCS is mandatory.
1.3 BMS and EMS – Data-Driven Optimization
The BMS monitors cell voltages, temperatures, and current flows, preventing overcharge, deep discharge, and thermal runaway. Advanced BMS units incorporate passive or active cell balancing to maximize usable capacity. The EMS layer applies predictive algorithms: it forecasts load profiles, renewable generation (if any), and real-time energy prices to decide charge/discharge schedules. Many industrial operators achieve 15–20% additional savings by integrating EMS with weather forecasts and utility rate signals.
2. Addressing Industry Pain Points with Battery Electric Storage Systems
Energy managers and plant directors frequently report four categories of recurring problems, each solvable through targeted BESS deployment.
- Demand charge spikes: Commercial tariffs often include peak demand charges (USD 15–40 per kW). A battery electric storage system discharges during brief high-consumption intervals, shaving the peak and reducing monthly bills by 25–40%.
- Renewable curtailment: Solar or wind over-generation forces operators to shed clean energy. BESS absorbs surplus and dispatches it during evening peak periods, improving on-site renewable self-consumption from 40% to over 85%.
- Power quality disturbances: Voltage sags, swells, and harmonics cause PLC resets or motor overheating. BESS with fast-response PCS (sub-cycle reaction time) stabilizes voltage and frequency.
- Unplanned downtime risk: Even short outages (1–2 seconds) can halt production lines. BESS provides seamless ride-through, bridging the gap until a generator starts or utility returns.
These pain points are not speculative; field data from over 200 industrial BESS deployments show payback periods ranging from 2.8 to 5.2 years, depending on local demand tariffs and incentive structures.
3. Technical and Economic Modeling for BESS Sizing
Correct sizing avoids both underperformance (frequent full cycles, premature aging) and overcapitalization. Engineers rely on two complementary methods: peak shaving simulation and energy time-shift analysis.
3.1 Peak Shaving Algorithm
Using 15-minute interval load data (minimum one year), the required power rating (kW) equals the difference between the actual peak and a target peak threshold. For example, a facility with a 1,200 kW peak and a target of 950 kW requires a 250 kW inverter. Energy capacity (kWh) is determined by the area above the threshold across the worst peak event. Most applications require 1–3 hours of duration at rated power.
3.2 Revenue Stacking – Combining Value Streams
A modern BESS generates returns from multiple simultaneous streams:
- Demand charge reduction (primary value, typically 60–70% of total savings)
- Energy arbitrage (buying low, selling high – requires time-of-use tariffs with 4:1 price ratio)
- Frequency regulation or demand response participation (available in deregulated markets)
- Backup power – avoided downtime costs (valued at USD 5,000–50,000 per hour for semiconductor or food processing plants)
Battery electric storage system ROI models must incorporate calendar aging (capacity fade over time) and cycle aging. Premium LFP cells retain 70–80% of nameplate capacity after 10 years of daily cycling, with end-of-life often defined as 70% state-of-health.
4. Application Deep Dive – High-Reliability Sectors
While BESS versatility spans many industries, three segments demonstrate exceptionally strong business cases.
4.1 Data Centers – Power Assurance and PUE Improvement
Data center operators face stringent Tier requirements (2N or N+1 redundancy). Integrating BESS with existing UPS flywheels or VRLA batteries reduces cooling loads (lithium operates efficiently at higher temperatures, cutting HVAC power by 15–20%). Furthermore, the BESS can participate in utility demand response without affecting IT loads, generating additional revenue per MW of curtailable capacity.
4.2 Manufacturing – Peak Demand Control and Power Factor Correction
Automotive stamping presses, injection molding machines, and HVAC systems create short-duration demand spikes. A BESS with high C-rate capability (2C to 4C) discharges for 5–15 minutes to flatten those spikes. Simultaneously, the PCS can provide reactive power, improving power factor from 0.85 to 0.98 and avoiding utility penalties.
4.3 Renewable-Powered Microgrids – Islanding and Black-Start
Remote mines, agricultural processing, and island resorts often rely on diesel generators. Adding a battery electric storage system reduces generator run hours by 50–70% and enables the system to operate with very low load factors (generators run at optimal 70–80% load while BESS handles fluctuations). This hybrid approach conserves fuel, lowers maintenance intervals, and cuts CO₂ emissions without discarding existing generator assets.
5. Integrating BESS with Existing Generator Fleets – A Synergistic Model
Legacy diesel or gas generators remain valuable assets for extended outages (days) and high instantaneous power. Rather than replacement, intelligent control systems orchestrate BESS and generators:
- Generator start delay: BESS handles the first 10–30 seconds of an outage, allowing generators to start without abrupt load application.
- Peak smoothing during generator operation: When generators run due to a utility outage, large motor starts (e.g., chiller compressors) can cause voltage dips. BESS provides instantaneous current, stabilizing the microgrid.
- Fuel efficiency optimization: The generator operates at a fixed, efficient load point (e.g., 75% of rating) while BESS charges/discharges to match varying facility load. This reduces specific fuel consumption by 12–18%.
Foxtheon has deployed such hybrid control platforms across Southeast Asian industrial parks, demonstrating a 31% reduction in annual fuel costs while maintaining 99.99% availability. This approach respects existing capital investments and avoids any adversarial positioning toward generator technologies.
6. Safety, Standards, and Lifecycle Management
Commercial BESS must comply with UL 9540 (system-level safety), UL 1973 (battery module), and NFPA 855 (installation and fire protection). Key risk mitigation measures include:
- Cell-level thermal fuses and pressure relief vents
- Independent gas detection (CO, H₂, VOC) with forced ventilation
- Fire suppression using aerosol or clean agent (Novec 1230, FM-200)
- Minimum clearance distances for outdoor enclosures (per NFPA 855 Table 9.2.3)
For operators in seismic zones or high-corrosion environments (coastal chemical plants), Foxtheon offers IP55/NEMA 3R enclosures with integrated HVAC and seismic rack certification (IBC 2018). Remote monitoring of cell impedance and internal temperature gradients allows predictive maintenance, replacing modules before failure rather than after.
7. Future-Proofing Your Energy Architecture with Smart BESS Controls
The next generation of battery electric storage system leverages AI-driven energy trading and virtual power plant (VPP) aggregation. A VPP clusters dozens of distributed BESS units across different customer sites, bidding into wholesale energy and ancillary service markets. Early adopters in California and Germany have seen additional revenue of USD 80–120 per kW annually from frequency regulation alone. Selecting a BESS with open communication protocols (Modbus TCP, IEC 61850, or OCPP) ensures future compatibility with utility VPP programs.

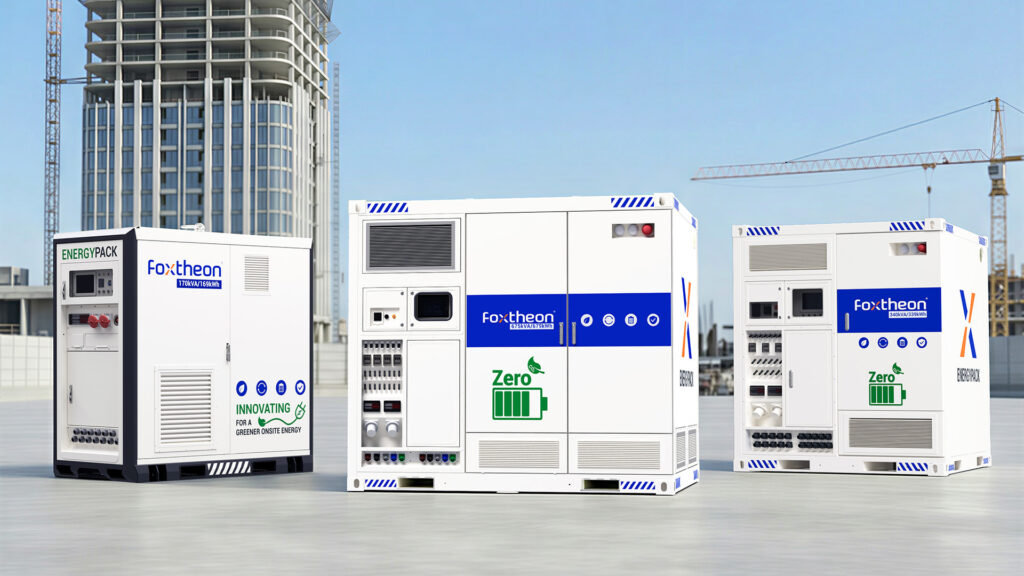

Foxtheon provides end-to-end engineering support: from site auditing, load signature analysis, and financial modeling to commissioning and 24/7 remote EMS optimization. Their modular cabinet designs (from 100 kW to 10 MW) allow incremental capacity additions as facility loads evolve.
Frequently Asked Questions (FAQ)
Q1: What is the typical payback period for a commercial battery electric storage system in a manufacturing environment?
A1: Based on real-world projects with demand charges between USD 20–30/kW and daily peak shaving of 200–500 kW, payback periods range from 2.5 to 4.5 years. Adding revenue from demand response or frequency regulation shortens the period to 2–3 years. Accurate load profiling (15-minute data for 12 months) is essential before committing to any vendor.
Q2: Can a BESS operate in parallel with existing diesel generators without replacing them?
A2: Yes – and this hybrid configuration is recommended. The BESS handles transient loads and short-duration peaks, while generators provide bulk energy for extended outages. A microgrid controller coordinates both assets, reducing generator run hours, saving fuel, and lowering maintenance costs. No generator replacement is required; the BESS adds a complementary layer.
Q3: What safety certifications should a buyer demand for a lithium-based battery electric storage system?
A3: At a minimum, request UL 9540 (system), UL 1973 (modules), and UL 1741 (inverter). For installations in seismic zones, require IBC 2018 or 2021 certification. For fire safety, look for NFPA 855 compliance and third-party testing of thermal runaway propagation (e.g., cell-to-cell propagation resistance verified by DNV or Intertek).
Q4: How does low temperature affect BESS performance, and what mitigation is available?
A4: Below 0°C, lithium-ion cells cannot accept charge without risk of lithium plating. High-quality BESS enclosures include self-heating functions (using PTC heaters powered from the grid or the battery itself once the temperature reaches safe levels). For outdoor installations in regions with -20°C winters, specify a system with an insulated enclosure and integrated HVAC that maintains 10–35°C internal temperature.
Q5: What is the difference between AC-coupled and DC-coupled BESS architectures, and which is better for retrofits?
A5: AC-coupled systems connect to the facility’s existing AC bus via a dedicated inverter; they are simpler to add to existing solar or generator setups. DC-coupled systems share a common DC bus with solar charge controllers, achieving slightly higher round-trip efficiency (1–2% better) but require deeper integration. For retrofit projects with existing PV inverters, AC-coupled is almost always the more practical choice.
Q6: What ongoing maintenance does a BESS require?
A6: Modern BESS units are largely maintenance-free for the first 5–7 years. Recommended actions include annual infrared scanning of electrical connections, calibration of the BMS current sensors (every 3 years), and air filter replacement for forced-air cooling systems. Remote firmware updates for EMS and PCS controllers are typically performed by the vendor via secure VPN. After 8–10 years, some cell modules may need replacement depending on capacity fade.
