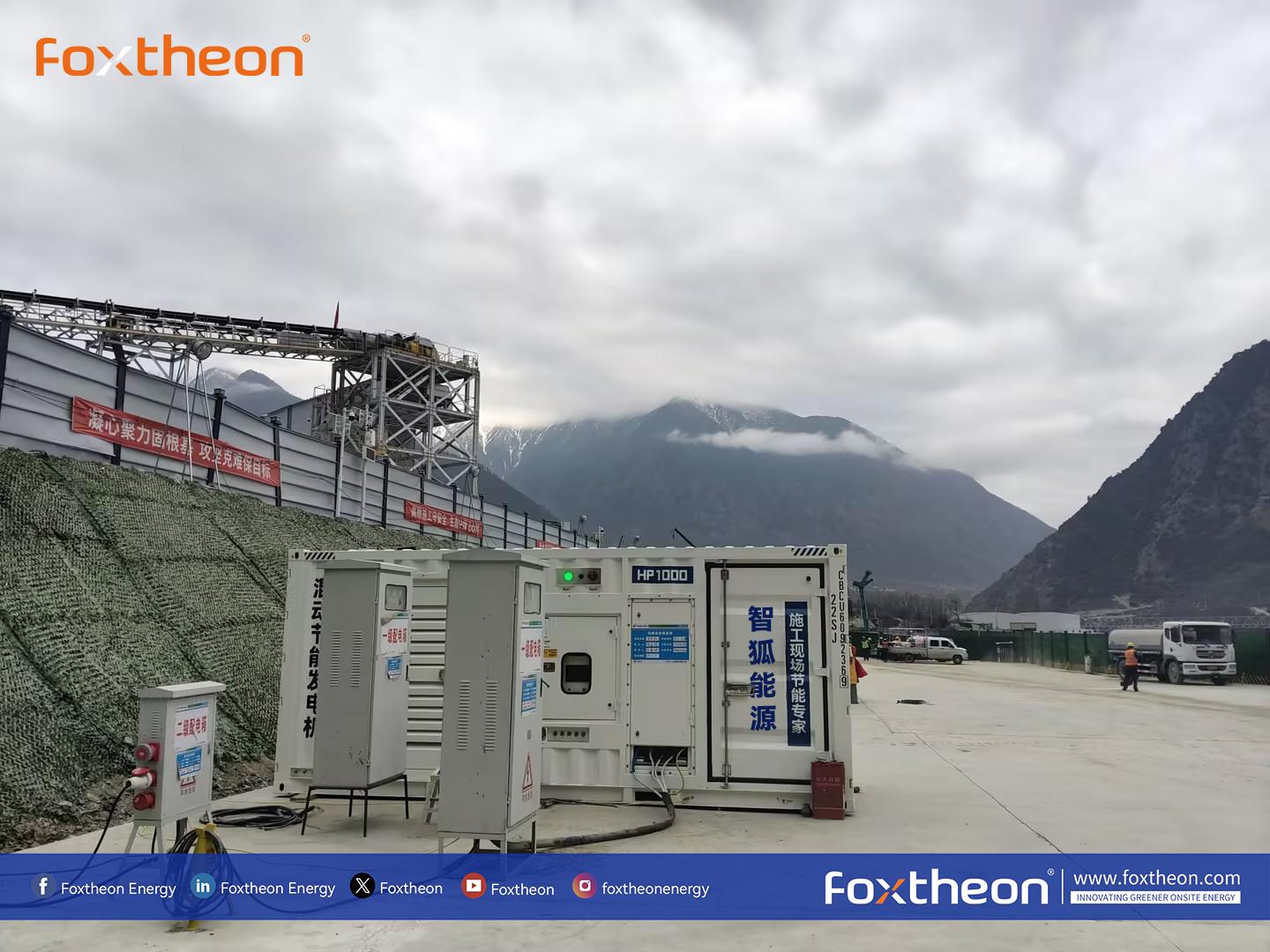

Modern electrical distribution networks require robust, flexible solutions to balance local generation and demand. As commercial and industrial (C&I) facilities continue to expand their on-site solar photovoltaic (PV) capacity, managing the intermittency of these generation assets has become a priority for plant engineers and system designers. A widely adopted configuration for addressing these challenges is ac coupled battery storage. By decoupling the generation and storage subsystems on the alternating current (AC) side of the microgrid, system integrators gain significant flexibility in design, installation, and long-term scaling.
When implementing these configurations, choosing components that exhibit high thermal stability and advanced communication capabilities is necessary. Manufacturers such as Foxtheon provide the industrial-grade hardware needed to construct durable, multi-megawatt systems capable of operating under demanding grid conditions. Understanding the technical nuances of AC coupling is the first step in successful system deployment.
Technical Architecture and Power Flow Dynamics
The primary distinction of an ac coupled battery storage topology lies in the electrical node where the solar PV array and the electrochemical energy storage system meet. Unlike DC-coupled topologies, where both assets share a common direct current (DC) bus feeding into a single hybrid inverter, AC-coupled systems feature distinct inverters for each subsystem. The solar PV array utilizes standard grid-tied string or central inverters to convert DC generation directly into AC power at the local distribution voltage (typically 400V tri-phase, or medium-voltage levels via step-up transformers).
Concurrently, the energy storage subsystem utilizes a bi-directional Power Conversion System (PCS) connected to the same AC distribution board. This physical separation yields specific power flow pathways during operation:
- Direct Load Supply: When solar PV generation matches the local load demand, AC power flows directly from the PV inverters to the facility loads without passing through the battery storage medium, minimizing conversion losses.
- Battery Charging Phase: When PV generation exceeds the local load, the surplus AC power is routed back through the bi-directional PCS, rectified to DC, and stored in the battery cells.
- Battery Discharging Phase: During periods of low solar generation or high peak demand, the PCS draws DC energy from the batteries, inverts it to AC, and feeds it to the local distribution bus to support the facility or feed the wider utility grid.
This dual-inversion process (DC to AC from the PV, and AC to DC into the battery) introduces slightly higher round-trip conversion losses compared to direct DC-coupling. However, the operational benefits—such as independent inverter sizing, standardized component selection, and the simplification of the overall system protection scheme—often outweigh these fractional efficiency differentials in larger commercial configurations.
Retrofitting Legacy Commercial Solar Arrays
A significant portion of commercial solar projects are legacy installations equipped with fully functional, grid-tied inverters operating under long-term utility agreements. Modifying these existing assets to incorporate energy storage presents unique engineering challenges. Attempting to convert these systems to a DC-coupled architecture would require dismantling existing high-voltage DC string configurations, replacing the central or string inverters with hybrid units, and potentially voiding manufacturer warranties.
Implementing ac coupled battery storage eliminates these complications. Because the storage subsystem behaves as an independent generator/load asset on the AC bus, it can be integrated at the main distribution board without altering the pre-existing PV array wiring or inverter settings. This approach preserves existing capital investments in solar infrastructure and simplifies the engineering process, as the existing PV system continues to operate under its original control parameters.
Furthermore, AC coupling enables spatial separation of the assets. In dense industrial environments, the ideal physical location for the battery storage enclosure may be hundreds of meters away from the solar array or rooftop installation. Transporting energy over long distances is far more efficient and compliant with standard building codes when conducted at high AC voltages, rather than routing custom, high-current DC cables across a facility.
Battery Chemistry, Structural Materials, and Thermal Management
The reliability of utility-scale energy storage relies heavily on the underlying cell chemistry and the mechanical design of the containment enclosure. Industrial designs have shifted toward Lithium Iron Phosphate (LiFePO4) chemistry due to its superior safety profile and cyclic longevity. LiFePO4 cells possess high thermal stability, meaning they are less susceptible to thermal runaway under high current discharge rates compared to conventional Nickel Manganese Cobalt (NMC) formulations.
To support these cells, manufacturers utilize structurally reinforced enclosures engineered to withstand environmental stresses. Industrial cabinets are typically constructed from heavy-gauge galvanized steel or marine-grade aluminum alloys, finished with high-durability powder coatings to resist corrosion in saline or highly polluted industrial environments. These enclosures are rated to IP54 or IP65 standards to prevent dust and water ingress, ensuring the internal electronics remain isolated from ambient contaminants.
Thermal management within these enclosures is crucial for maintaining battery health and balancing cell degradation rates. Modern systems utilize advanced climate control mechanisms, classified into two primary designs:
- Forced Air Cooling: Utilizes redundant, variable-speed fan assemblies and targeted ducting to circulate filtered air through the battery racks. This is suitable for moderate climates with low-to-medium C-rate operational profiles.
- Liquid Cooling Systems: Employs closed-loop chilling plates that circulate a water-glycol mixture directly adjacent to the battery cells. Liquid cooling provides superior thermal uniformity, maintaining cell-to-cell temperature differentials within 2 degrees Celsius, which is highly beneficial for high-throughput applications.
Integrating these thermal controls with the system’s battery management architecture is necessary to prevent localized hot spots that can accelerate degradation or trigger safety shutdowns during rapid charging and discharging cycles.
BMS Integration and EMS Control Hierarchies
Operating an ac coupled battery storage configuration requires a multi-layered control architecture that coordinates the battery chemistry, the PCS, and the existing solar generation. At the lowest level of this hierarchy is the Battery Management System (BMS). The BMS monitors cell voltages, state of charge (SoC), state of health (SoH), and temperatures in real-time. It communicates this data via high-speed CAN bus or Modbus TCP protocols to the Power Conversion System, ensuring that charging or discharging currents do not exceed safe operational envelopes.
At the supervisory level, an Energy Management System (EMS) coordinates the interaction between the storage asset and the solar PV inverter. Since the PV inverter and the battery PCS operate independently on the AC bus, the EMS must actively monitor the facility’s main grid connection point to prevent reverse power flow into the utility grid (where prohibited) or to execute peak shaving strategies. For instance, during peak demand periods, the EMS instructs the battery PCS to discharge power onto the AC bus, reducing the net draw from the main utility connection.
For custom engineering projects, utilizing a partner like Foxtheon allows system developers to deploy robust EMS configurations that natively support industrial communication protocols, including IEC 61850 and DNP3. This ensures seamless integration with utility SCADA systems, enabling remote dispatch and participation in grid frequency regulation programs.
Grid Compliance, Safety, and Protection Schemes
Connecting utility-scale storage to a distribution grid requires compliance with strict grid-code requirements, such as IEEE 1547 and UL 1741. These standards govern how distributed energy resources (DERs) must behave during grid voltage or frequency deviations. AC-coupled systems must feature sophisticated protection relays capable of detecting islanding conditions—where a portion of the grid remains energized by local generation during a utility outage, posing a hazard to line workers.
The protection scheme must also account for fault current contributions from both the PV inverters and the battery PCS. Because solid-state inverters have limited short-circuit current output compared to traditional rotating generators, traditional overcurrent relays must be carefully calibrated. Implementing modern directional overcurrent relays and coordinating the trip curves of the AC breakers ensures that localized faults are isolated without shutting down the entire microgrid.
Furthermore, fire protection systems within the battery enclosure must be fully integrated with both the BMS and the main facility safety systems. Standard practices involve installing aspirating smoke detection systems (such as VESDA), gas detection sensors to identify off-gassing before thermal runaway occurs, and clean-agent suppression systems (such as Novec 1230) to extinguish localized electrical fires without damaging the surrounding electronic components.
Evaluating Sourcing and Supplier Qualifications
When selecting a manufacturing partner for C&I energy storage hardware, procurement teams and EPC (Engineering, Procurement, and Construction) firms must look beyond surface-level data sheets. A thorough evaluation of a supplier’s manufacturing process, quality control certifications (such as ISO 9001, ISO 14001, and ISO 45001), and compliance testing track record is required.
Key parameters to evaluate during the procurement phase include:
- Factory Acceptance Testing (FAT): Ensuring the manufacturer conducts full-load, high-voltage testing of the integrated system before shipping to minimize commissioning delays on-site.
- Warranty Terms: Verifying the cycle-life guarantees under specific operational profiles, including daily depth of discharge (DoD) limits and average cell operating temperatures.
- Engineering Support: Access to comprehensive technical documentation, including single-line diagrams (SLD), mechanical footprint drawings, and Modbus register maps for third-party EMS integration.
By partner-aligning with established manufacturers like Foxtheon, developers secure access to highly reliable, modular energy storage units that simplify on-site installation and streamline utility interconnection approvals.
Inquiry
For detailed technical specifications, custom single-line diagrams, or to discuss integrating storage systems into your upcoming commercial or industrial projects, please contact our engineering and sales team directly through our inquiry portal.
Frequently Asked Questions
Q1: What is the primary difference in energy flow between AC and DC coupled configurations?
A1: In a DC-coupled system, solar PV generation and battery storage share a single DC bus, requiring only one inversion step to feed AC loads. In an ac coupled battery storage configuration, solar PV and battery storage are connected via independent inverters to a common AC distribution board, requiring separate conversion stages but allowing for independent operation and simplified retrofitting.
Q2: Can AC-coupled systems function during a utility grid outage?
A2: Yes. To operate during a utility outage, the battery inverter (PCS) must possess grid-forming capabilities. In this mode, the PCS establishes a local voltage and frequency reference (acting as a microgrid master), allowing the existing grid-tied solar inverters to synchronize with it and continue generating power even when the utility grid is down.
Q3: Why is LiFePO4 preferred over other lithium-ion chemistries for C&I projects?
A3: Lithium Iron Phosphate (LiFePO4) is preferred due to its chemical stability, lower susceptibility to thermal runaway, and longer cycle life. This chemistry typically maintains robust capacity over thousands of cycles under demanding charge and discharge conditions, making it highly durable for industrial applications.
Q4: How does the EMS prevent overcharging in an AC-coupled system during islanded operation?
A4: In islanded mode, if the battery is near full charge and solar generation exceeds the load, the grid-forming PCS uses frequency shift power control. By slightly raising the AC grid frequency, the PCS signals the grid-tied PV inverters to curtail their output or shut down completely, preventing battery overcharging.
Q5: What certifications should engineers look for when sourcing commercial battery storage?
A5: Engineers should ensure compliance with global standards including UL 1973 (for battery packs), UL 9540 (for integrated energy storage systems), UL 9540A (for thermal runaway fire propagation testing), and IEC 62619 (for industrial safety requirements).
